EJP Maschinen GmbH
Booth number: E1D40
ejpmachines.com/
About us
Since its start in 1981 as an engineering company, EJP Maschinen GmbH has grown continuously and is today one of the leading producers of equipment for the production of bars, tubes and profiles. Due to its highly innovative machine design EJP Maschinen GmbH is recognized as the most advanced company in its field. So far customers in every industrialized area of the world are using equipment built by EJP. With its headquarters in Germany, subsidiary companies in South Korea, China, Italy as well as its sales and service representatives worldwide EJP is capable to satisfy their highly demanding customers. In addition, the EJP Group includes EJP-TOSCA Strahlanlagen GmbH, which manufactures wheel blast equipment for a wide range of applications, and EJP WIRE Technology GmbH, which produces equipment for wire production. The headquarters of EJP Maschinen GmbH in Baesweiler combines sales, design and production under one roof. Through direct interaction between the departments, our products are continuously optimized. Parts production and assembly in our own workshop characterise the quality and performance promise of EJP Maschinen GmbH.
Address
Max-Planck-Straße 4
52499 Baesweiler
Germany
E-mail: info@ejpmachines.com
Phone: +49 2401 95410
Internet: ejpmachines.com/
No. 8158, Huangshan Road
High-tech Development Zone
233000 Bengbu, Anhui
China
E-mail: info@ejp-bigsino.com
Phone: +86 552 4127228
Internet: www.ejp-bigsino.com
Contact person:
Jacques Paraskevas
Managing Director
E-mail: info@ejpmachines.com
Phone: +49 2401 9541-0
Thomas Ganser
Project Engineer
E-mail: info@ejpmachines.com
Phone: +49 2401 9541-0
Xue Kai Liang
Managing Director
E-mail: info@ejp-bigsino.com
Phone: +86 552 4127228
Products & Services
Equipment for the finishing of bars, tubes and profiles:
- Combined drawing systems for bars and tubes
- Drawbench equipment
- Peeling equipment
- Straightening equipment
- Centerless grinding equipment
- Chamfering and milling equipment
- Hot rolling equipment
- Packaging equipment
- Bar/tube testing equipment
- Cutting equipment
- Runout systems for extrusion presses
- Shotblasting equipment

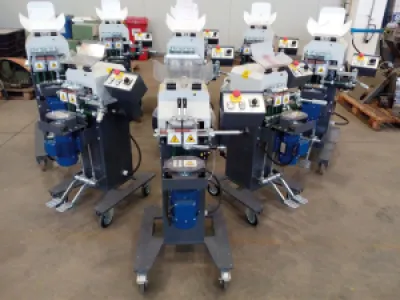

- Butt welding machines

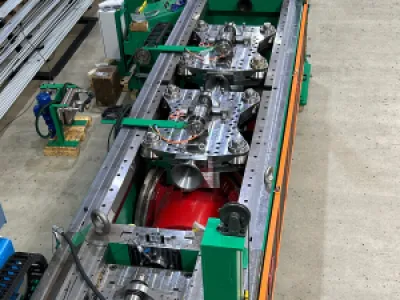

Combined Drawing Machines
Combined drawing machines are primarily used to produce bars or tubes from ring material. Depending on the material (steel, brass, copper, aluminium, etc.) the systems are composed of different components:

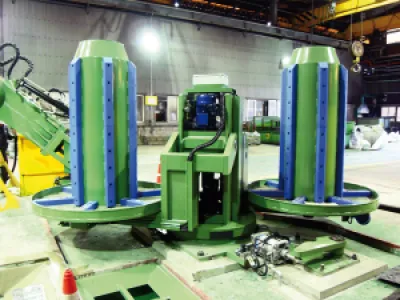

- Double Pay-Off

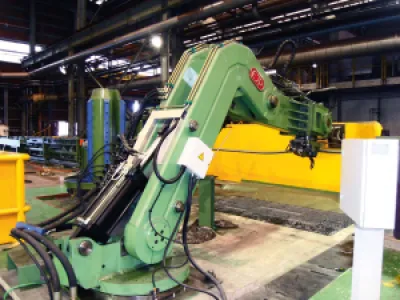

- Coil-Opening Robot

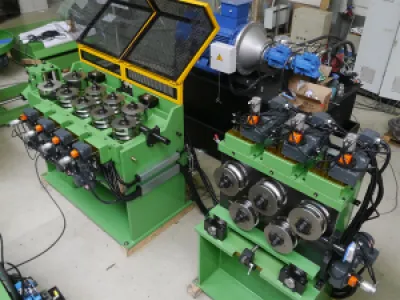

- Prestraightener
- Shotblasting Machine

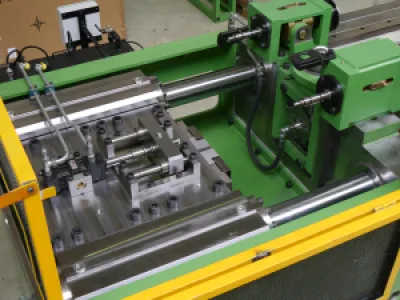

- Pushpointer
- Drawing Unit
- Chaintrack Drawing Unit

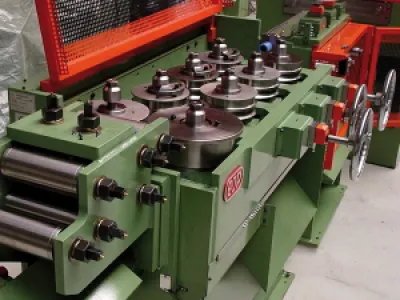

- Profile Straightener

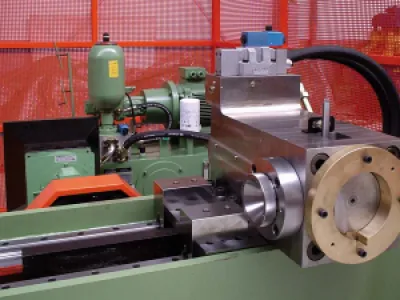

- Hydraulic Impact Shear
- Tube Guide

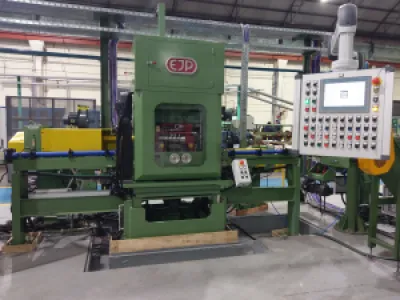

- 2-Roll-Straightener
- 2-Way Delivery Table
- Chamfering Machine
- Double Easy Down Collection Pocket
- Electric Control
Peeling Machines
Precision peeling machines for the production of bright steel in tolerances h8/h9 in the diameter range from 8 to 450 mm. Depending on requirements, production can be carried out from ring-to-ring, ring-to-bar or bar-to-bar. In combination with saws, shears, straightening machines, chamfering machines, etc., complete production lines can be created.

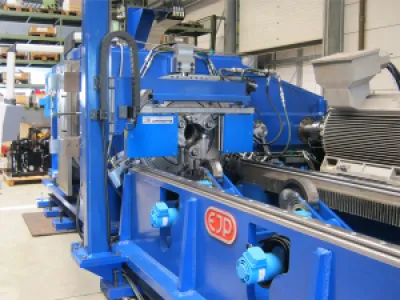

PM Series

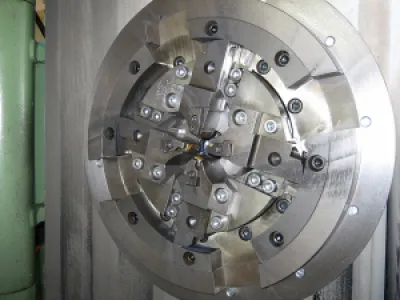

The PM series is based on the latest developments and features the unique, patented PM peeling head.
In contrast to all competitor systems, the PM peeling head adjustment is rotary and therefore enables maximum stability, regardless of the machined diameter. In the PM series, the compensation of the cutting insert wear occurs automatically. A laser measuring system is used for this purpose.
They consist of the following main components:
- Feeding unit
- Inlet guide
- Peeling head with drive and adjustment

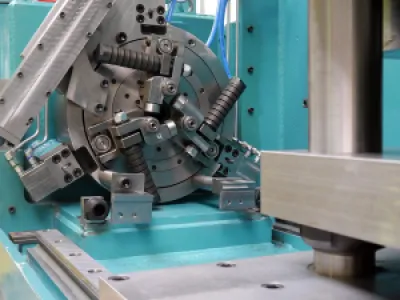

- Exit guide
- Laser system
- Pull-out carriage

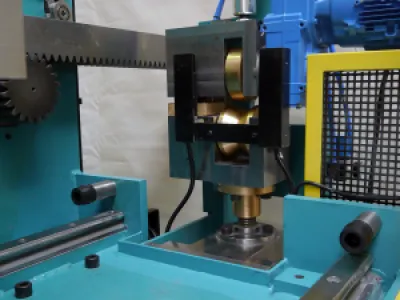

- Exit pinch roll

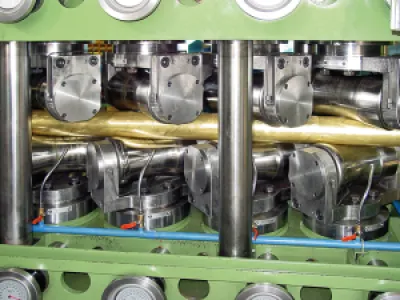

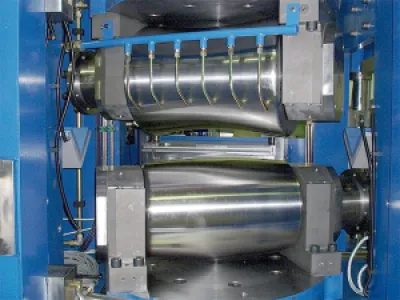

Straightening Machines
Precision straightening machines for wire and for straightening and polishing bars, tubes and profiles.

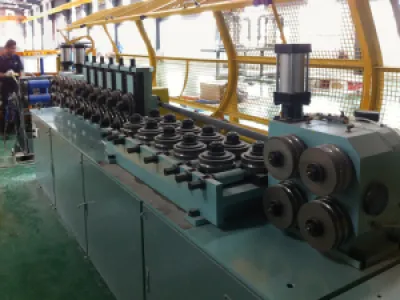

- Wire Straightening Machines

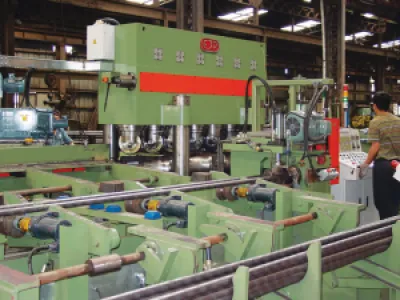

- 9-Roll Straightening Machines

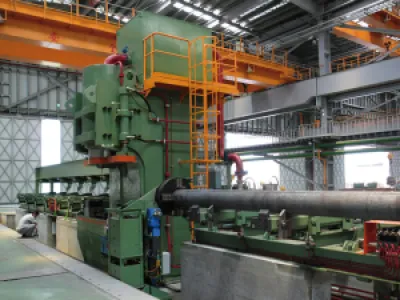

- Straightening Presses

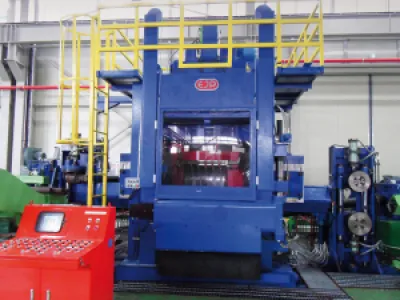

- 2-Roll Straightening Machines

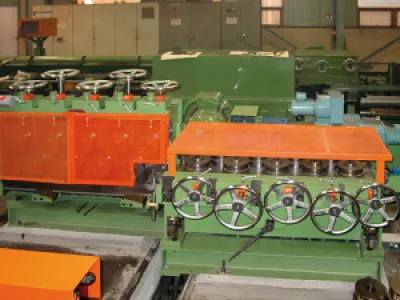

- Profile Straightening Machines
- Tube Straightening Machines

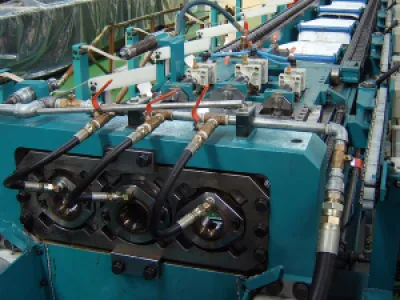

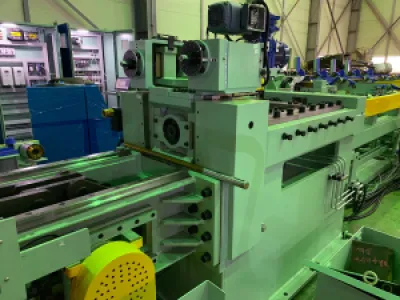

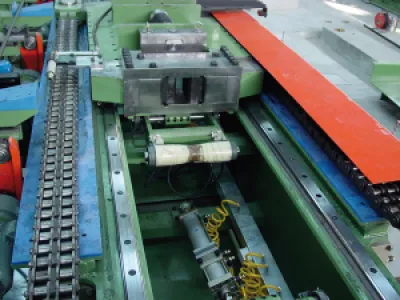

Drawbenches
Precision drawbenches are used whenever the application cannot be covered by a combined drawing machine for economic or technological reasons.
Centerless Grinding Machines
Precision grinding machines for the production of bright steel in tolerances of h5/h6 in the diameter range 1-150 mm. Precise surfaces with Ra ≤ 0.1 μm maximum can be achieved. By using double grinding wheel spindles and separate transport wheels, twice as much surface removal is guaranteed compared to conventional grinding machines.

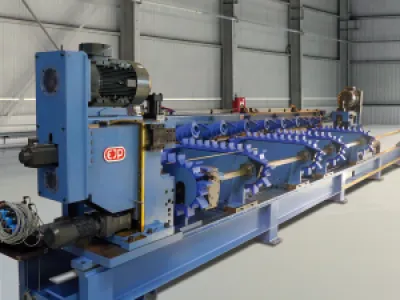

Chamfering Machines
Chamfering machines are used to chamfer the bar at both ends. Moreover, special bar ends, such as pins or counterbores.

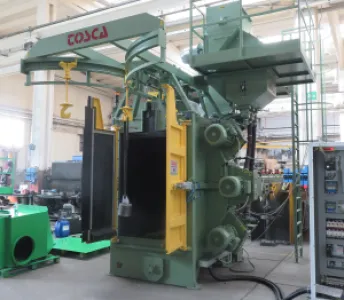

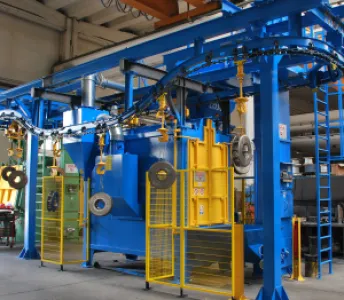

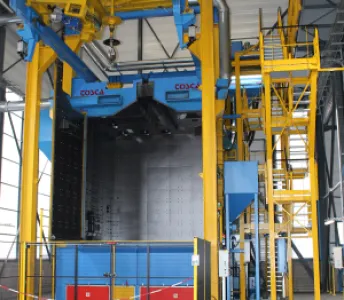

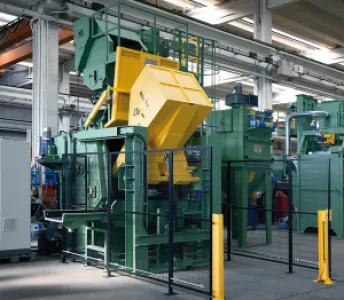

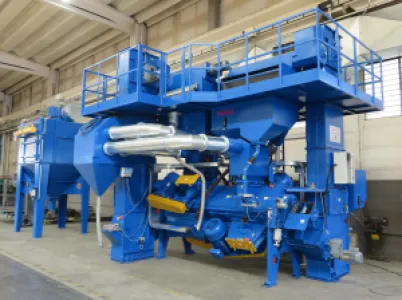

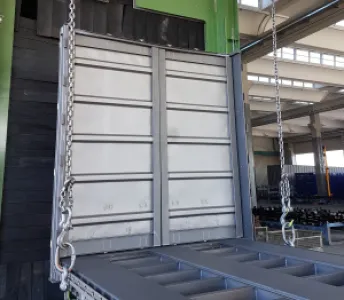

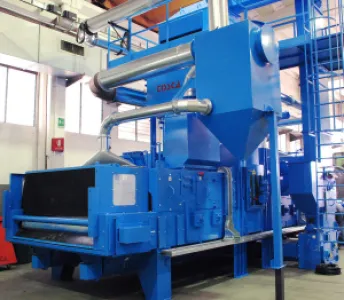

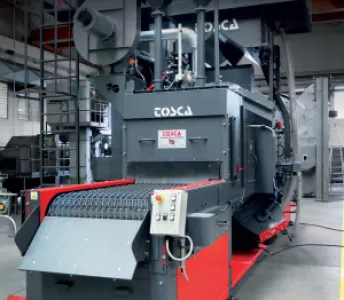

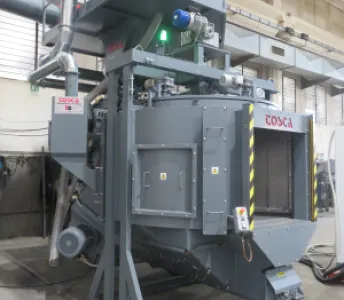

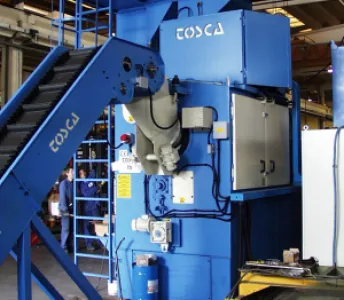

Shot blasting system
The shot blasting machine brings the surface of the starting material to the optimum condition. When processing steel and steel alloys, the material is mechanically descaled by a shot blasting machine before drawing. This ensures that only metallically pure material enters the drawing die of the drawing machine.
